Liquid Gas Seperator
source：西安華揚油氣設(shè)備有限公司 time：2017-10-25
| Model | HYZYQ800 | HYZYQ1000 | HYZYQ1200 |
| Capacity | 180?/h | 240?/h | 320?/h |
|
Main body Diameter |
800mm | 1000mm | 1200mm |
| Inlet Pipe | DN100mm | DN125mm | DN1250mm |
| Output Pipe | DN150mm | DN200mm | DN250mm |
|
Gas Discharge pipe |
DN200mm | DN200mm | DN200mm |
| Weight | 1750kg | 2235kg | 2600kg |
|
Dimensions |
1900×1900×5700mm | 2000×2000×5860mm | 2200×2200×6634mm |
Features and Benefits：

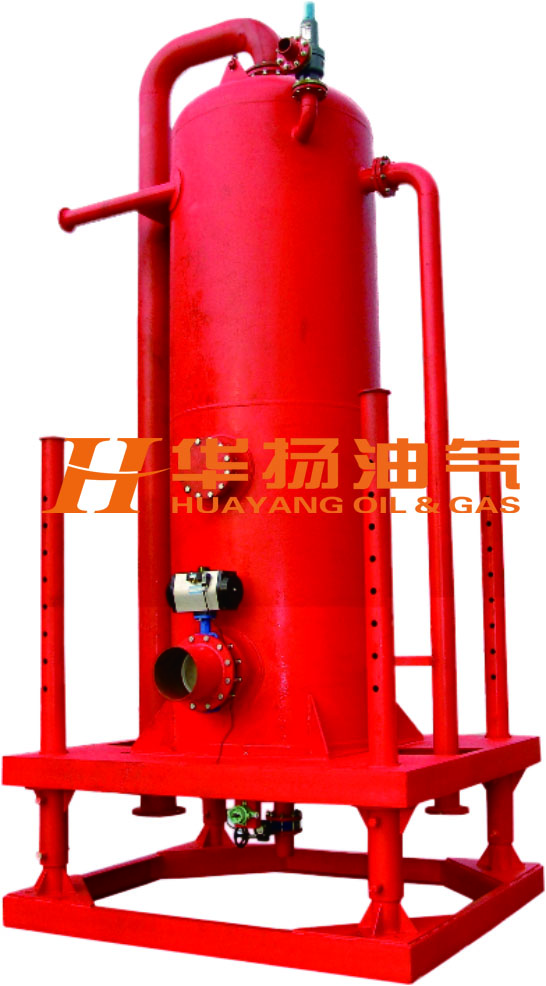

HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.
HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.
