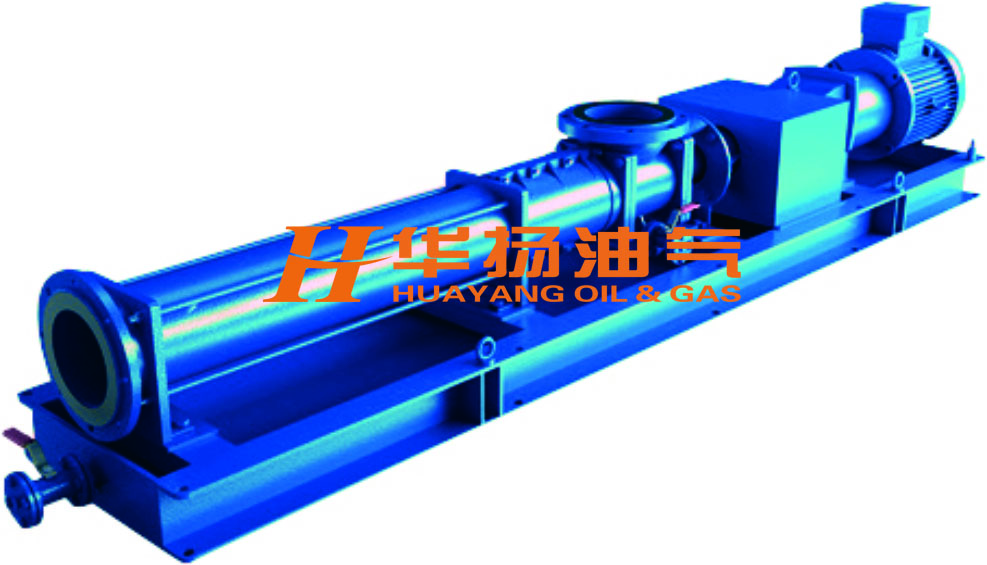

Mono Pump (Supply Pump for Centrifuge)
source：西安華揚油氣設備有限公司 time：2017-11-10
| Model |
Flow rate |
Pressure |
Power | Inlet | Nozzle Caliber |
Ex Standard |
Weight |
Dimension |
| HYG10A-040 | 10?/h | 0.3MPA | 4KW | 3 | 3 | ExdIIBt4 / IECEX / A-TEX | 245kg | 2245×320×550mm |
| HYG20A-055 | 20?/h | 5.5KW | 3 | 3 | 323KG | 2450×340×562mm | ||
| HYG30A-075 | 30?/h | 7.5KW | 4 | 4 | 386kg | 2761×370×600mm | ||
| HYG40A-110 | 40?/h | 11KW | 5 | 5 | 454kg | 3270×370×665mm | ||
| HYG50A-110 | 50?/h | 11KW | 5 | 5 | 608kg | 3790×400×782mm | ||
| HYG60A-115 | 50?/h | 15KW | 5 | 5 | 649kg | 3322×550×740mm | ||
| HYG70A-220 | 70?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm | ||
| HYG80A-220 | 80?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm | ||
| HYG90A-220 | 90?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm |
Features and Benefits：
1 screw pump is an ideal pump for feeding to decanter centrifuge. The main parts are screw shaft (rotor) and screw shaft bushing (stator),Cause the special geometry shape of the two parts, form pressurize capacity separately. The fluids flow along with the shaft, slow inner flow speed, capacity remains, steady pressure, meanwhile it will not generate vortex and agitating., The shaft of the pump is made from Stainless steel, TR Solid Control Screw pump is available for complete stainless steel body.
2.It can drive by coupler, or adjust the speed by using variable speed motor, Triangle Vbelt, gear box, etc. TR series screw pump is with less accessories,Compact structure, small volume,easy maintenance, rotor and stator are wear parts of this pump, it is convenient to replace.Stator is made of elastomeric material, it has particular advantages than other pump to transfer the fluids with high viscosity and hard suspended particles.
